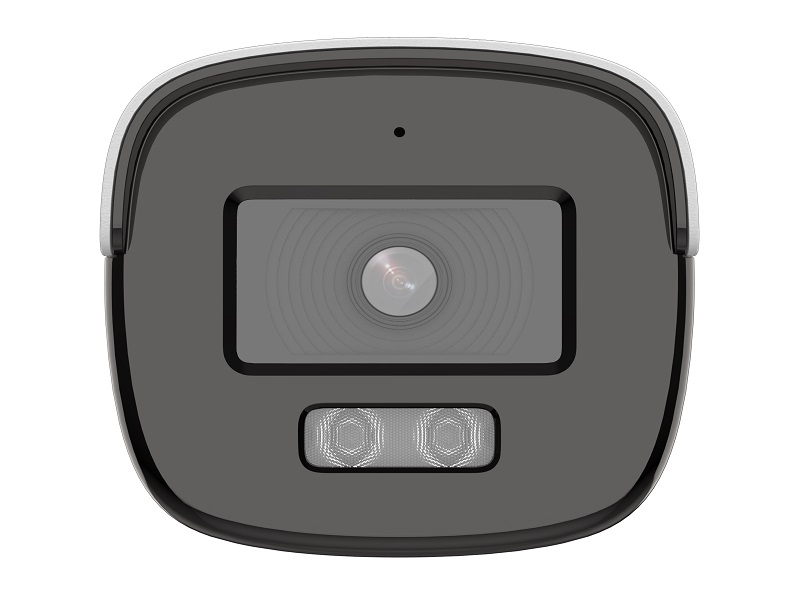

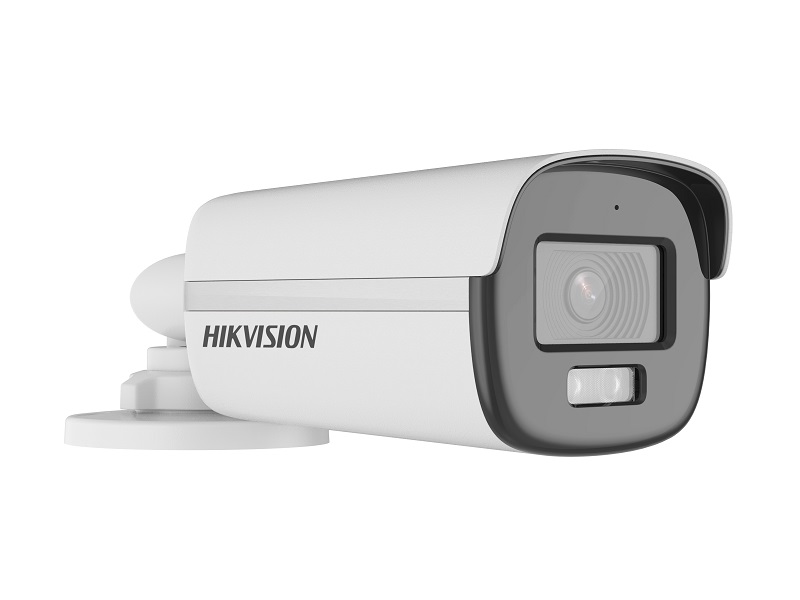

2 MP Smart Hybrid Light with ColorVu Fixed Bullet Camera
High quality imaging with 2 MP, 1920 `d7 1080 resolution
24/7 color imaging with F1.0 aperture
Smart-Hybrid light, optimize your security with flexible lighting options
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 40 m white light distance for bright night imaging
Up to 40 m IR distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) `d7 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0`b0 to 360`b0,Tilt: 0`b0 to 180`b0,Rotate: 0`b0 to 360`b0
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105`b0, vertical FOV: 56`b0, diagonal FOV: 126`b0
3.6 mm, horizontal FOV: 84`b0, vertical FOV: 46`b0, diagonal FOV: 98`b0
Lens Mount
M12
Microphone
Pickup Distance
In a radius of up to 5 m
Amount
1
Illuminator
Supplement Light Type
Smart,IR,White Light
Supplement Light Range
IR: Up to 40 m,White Light: Up to 40 m
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness, Sharpness, Anti-banding, AGC
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
